Guide to Snapmap+

What is Snapmap+

Snapmap+ is a tool that reads and writes a DOOM (2016) SnapMap file directly, instead of going through the game’s built-in editor UI. That gives you three things the stock editor can’t:

• Properties the Properties menu doesn’t expose. Every entity in DOOM’s engine has far more fields than SnapMap’s UI shows you — Snapmap+ lets you read and write all of them.
• No editor guardrails. Name length limits, size limits, and the fixed lists of textures/models/ effects the Properties menu picks from aren’t rules the engine enforces — they’re just what the stock editor’s UI happens to offer. Because Snapmap+ writes the map file directly instead of going through that UI, none of those limits apply: you can scale something past the normal max size, or set a texture that isn’t in SnapMap’s own picker at all.
• Entities SnapMap was never built to place. The DOOM engine contains far more object types than SnapMap’s palette exposes. Snapmap+ can place and configure any of them.

Edits that use stock engine behavior and installed assets can travel with the map file itself, including to console players. Features that supply new runtime resources have additional requirements: resized Grid Rooms require Snapmap+ on the player’s PC and cannot be delivered to vanilla or console players.

Installing Snapmap+

Get the pre-patch DOOM files

Snapmap+ currently targets the DOOM build from before the April 2024 patch — the patch changed enough of the engine’s internals that Snapmap+ needs to be rebuilt against it, and that work is ongoing separately. Until then, you’ll need to run DOOM on the previous Steam depot:

1. Press Windows Key + R, then enter steam://nav/console to open the Steam console.
2. In the Steam console, run:

   download_depot 379720 379721 2206249600939156631


3. Once it finishes, find the downloaded files under your Steam folder, typically: C:\Program Files (x86)\Steam\steamapps\content\app_379720\depot_379721
4. Copy those files into your DOOM install folder (e.g. C:\Program Files (x86)\Steam\steamapps\common\DOOM), replacing everything when prompted.

Online services (playing and publishing maps) still work on this depot. Multiplayer/Coop matchmaking with other players does not while you’re on it.

Running “Verify integrity of game files” in Steam will silently pull you back to the current (patched) build — if that happens, and you still have the Snapmap+ files installed, remove them first (see below), verify, then redo the depot-download steps above when you want to go back to editing.

Install Snapmap+ itself

Download snapmap-plus.exe from the Snapmap+ site (or from the project’s GitHub Releases page) and double-click it. It finds your DOOM 2016 install automatically by looking through your Steam libraries, asks you to confirm, and places the overlay. That’s the whole install. (In the in-game console, Snapmap+’s commands and cvars all carry the short sh_ prefix — sh_help lists them.)

A few practical notes:

• Close DOOM first. A running game locks the files — the installer detects this and asks you to close it rather than failing cryptically.
• If auto-detection can’t find DOOM (a non-Steam copy, say), run it from a terminal instead and point it at the folder: snapmap-plus install --doom "C:\path\to\DOOM".
• While Snapmap+ is in beta, the installer says “No stable release has been published yet” and installs the newest beta automatically — nothing extra to do.
• Already installed? Double-clicking snapmap-plus.exe again shows your installed version, tells you when a newer one is available (press Enter to update), and takes any command — update, changelog, uninstall, status — right there, no terminal needed.
• Updating later: run snapmap-plus update — it updates both the overlay and snapmap-plus.exe itself. You never need to re-download anything from the site.
• Coming from the original SnapHak? If your DOOM folder still has the original (closed-source) SnapHak in it, the installer notices, tells you, and removes its files as part of the install — Snapmap+ fully replaces it, so nothing of the old tool needs to stay behind. Your maps, prefabs and strings carry straight over: they are copied from the old %USERPROFILE%\snaphak folder into Snapmap+’s own data folder (%LOCALAPPDATA%\snapmap-plus). An old overrides folder is left where it is (see Packages).
• Packages from an earlier release? This release does not use them; see Packages.
• Uninstalling: snapmap-plus uninstall restores your DOOM folder to exactly what it was before. Your own Snapmap+ data (config.json, prefabs, rawmaps under %LOCALAPPDATA%\snapmap-plus) is left untouched.
• snapmap-plus help in a terminal lists everything else: status, changelog, version. status and version also print your game’s identity (Game: DOOMx64vk.exe: DOOM 2016 build 13954591 (20240321-104810-ginger-fuchsia, Vulkan, 3d8b4393)), the same line the app puts on reports.

Snapmap+ supports the current DOOM 2016 on Steam (the April 2024 update). The installer checks which build you have before downloading anything; if your game is the older 2018 build, it installs v0.2.1-beta.19, the final Snapmap+ release for that build.

What actually lands in your DOOM folder is small: XINPUT1_4.dll in the folder itself (XINPUT1_3.dll on the 2018 build), and snapmap-plus-ui.dll inside a snapmap-plus\ subfolder. Everything is hash-verified before a single file is touched, and the installer keeps a record so uninstall reverses exactly what it placed. Your settings are separate: Snapmap+ creates %LOCALAPPDATA%\snapmap-plus\config.json the first time it starts, rather than shipping one in the installer.

Opening Snapmap+

Either renderer works — you don’t have to pick one. DOOM 2016 ships two executables built from the same source, DOOMx64vk.exe (Vulkan) and DOOMx64.exe (OpenGL), and switches between them by relaunching itself, so one Steam launch can land you in either. Snapmap+ installs once and loads into whichever executable is actually running. Nothing to configure.

The renderer lives in the r_renderAPI cvar (0 is OpenGL, 1 is Vulkan), stored in %USERPROFILE%\Saved Games\id Software\DOOM\base\DOOMConfig.local. Changing it is what makes DOOM restart into the other executable — useful to know if you’re chasing a graphics problem, but not something Snapmap+ asks you to touch. OpenGL support is new: it is proven against the shipped OpenGL executable in our tests, so if you see Snapmap+ behave differently there than under Vulkan, that’s worth reporting.

Once installed, open a SnapMap in editor mode. A second window — the Snapmap+ panel — will appear alongside the DOOM window; you’ll need to switch windows (Alt+Tab) to see it, since it doesn’t overlay the game.

Set DOOM’s display mode to Windowed or Borderless while you’re editing with Snapmap+ — avoid true Fullscreen. Snapmap+’s panel is a separate OS window, and switching away from a truly-fullscreen DOOM window to look at it can crash the game. Borderless and Windowed don’t have that problem.

The window

Snapmap+’s panel has four tabs — Assets, Entities, Prefabs, and Timelines — and a couple of controls that stay visible no matter which tab you’re on:

View → Light Theme / Dark Theme switches the panel’s whole color scheme. It doesn’t follow your system theme automatically — pick whichever you prefer. Snapmap+ remembers the choice and applies it before the window first appears on later launches, so a saved dark theme does not flash light while loading.

config.json is safe to leave alone. If you deliberately delete it, Snapmap+ treats that as Reset preferences and recreates the default light setting, Show Hidden off and Entity selection mode off on the next startup. If the file is damaged, Snapmap+ keeps a timestamped .corrupt.json backup, restores defaults, and tells you once. If it cannot save a window setting, that setting still works for the current session and the window explains that it was not remembered. Updates, uninstall, and reinstall preserve the file.

The status bar along the bottom stays visible on every tab too:

• The green dot plus version string on the left confirms Snapmap+ is connected and tells you which build you’re running.
• Selected shows how many entities are currently selected.
• X / Y / Z is your editor camera’s live position, and updates continuously while you move around — handy for finding coordinates to paste into a property. Check Lock position to pin the fields (and the camera) in place instead of tracking your movement live; editing a locked field’s value moves the camera there.
• Updated (far right) is a live timestamp of the last change Snapmap+ picked up from the map.

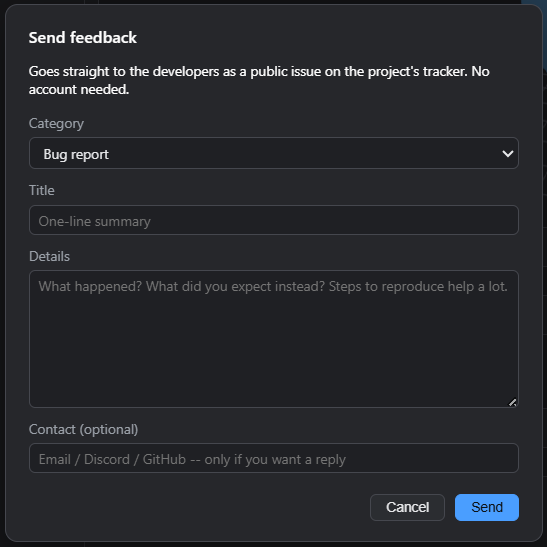

• The ? icon next to it opens the feedback dialog — see Reporting Bugs and Requesting Features.

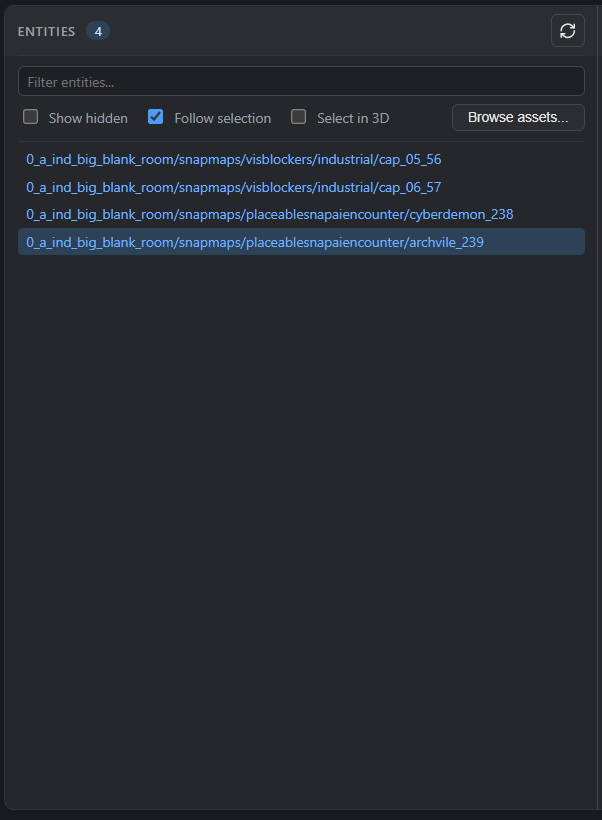

The Entities Tab

The Entities tab lists every entity placed in your map, by its reference ID and, if you’ve given it one, its display name. The list keeps itself up to date automatically as you edit — Refresh is there if you ever want to force an immediate re-sync yourself.

• Filter entities… narrows the list by typing part of an ID or name.
• Show hidden reveals the entities that exist in every map by default (the built-in filters like “any player” / “any AI”, etc.) — left unchecked, those are hidden so the list stays focused on what you actually placed. Snapmap+ remembers the choice.
• Follow selection makes the list track whatever you have selected in the SnapMap 3D editor — select something in-game, and its row (and the Entity State panel) update to match. Turn it off if you’d rather browse the list independently of what’s selected in-game.
• Select in 3D — the reverse direction: selecting a row (or rows) here also selects the matching entity in the SnapMap 3D editor.

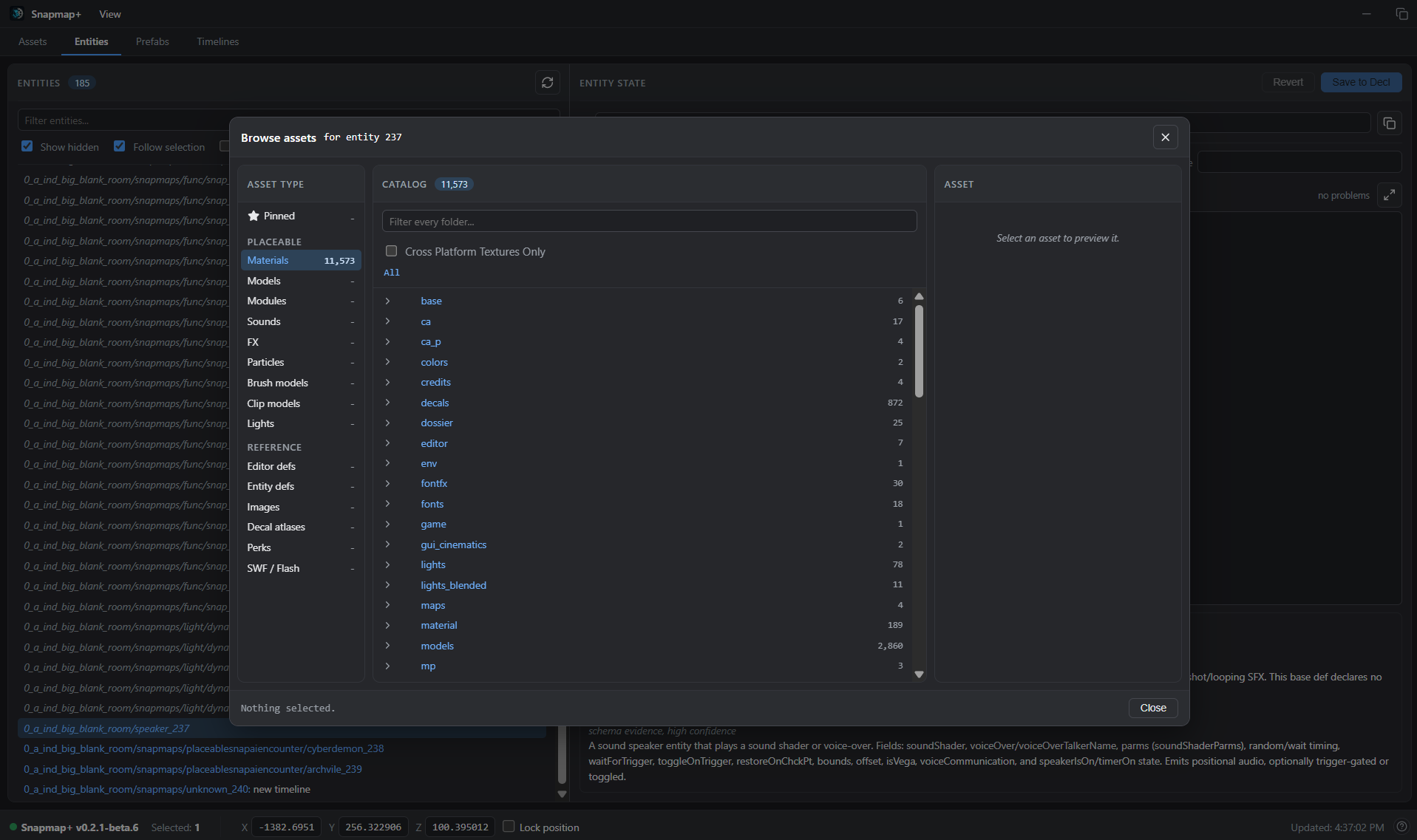

• Browse assets… opens the Assets tab as a modal, scoped to whichever entity is currently selected — a shortcut for retexturing or reassigning a model/sound without switching tabs.

Follow Selection and Select in 3D are opposite directions of one mode, so they cannot be enabled together. Snapmap+ remembers the direction you choose (or that both are off) for the next launch.

• Deselect clears whatever’s selected in the 3D editor. Occasionally clicking off an object in-game doesn’t fully deselect it — this button is a reliable way to force it.

Right-clicking one or more selected rows gives you:

• Copy ID — copies the reference ID(s) to your clipboard, for pasting into another entity’s property (e.g. a targets list — see Targets and Logic Signaling).
• Delete — deletes the entity(ies) exactly as pressing Delete in the 3D editor would, following the same rules: objects the editor protects and room doors or caps are not deleted, and Ctrl+Z undoes it like any other delete. A message says what was deleted, or why nothing was.
• Push to stack 0 — adds the entity(ies) to SnapStack’s scratch stack 0 (see SnapStack).
• Clear stack 0 — empties stack 0 out, regardless of what’s currently selected.

Entities that ship as part of the map’s module (rather than ones you placed yourself) also show up in this list — editing or deleting those isn’t permanent; they reset the next time the map reloads. If you need one gone for good, deleting it directly won’t stick — instead, signal it (via a targets list, or a Timeline) to a Remove node/command.

The Entity State Panel

Selecting an entity (in the list, or in-game with Follow Selection on) opens its Entity State panel on the right.

• ID — the entity’s reference ID, read-only, with a Copy button.
• Inherit and Classname — together, these determine what kind of entity this is (see Reclassing an Entity). Each has a dropdown of known values, but you can also type a value that isn’t listed.
• Displayname — the name shown in the SnapMap editor and in the Entities list (not shown to players in-game). Editing it here bypasses the editor’s character limit, and works even on entities the stock editor won’t let you rename (filters, for instance).
• Decl Text — the entity’s full underlying declaration, in the format described in Understanding the Decl Format. This is the same data the Properties menu edits a slice of — here you see and can edit all of it. Syntax is colorized as you type, and anything the checker flags (an unknown property, a value that doesn’t look like the type it expects, an enum value outside the known set) shows up as an underline plus a count in the corner — hover a warning to jump to it. A count of “no problems” doesn’t guarantee the map will load — the checker catches likely mistakes, it doesn’t validate everything the engine does.
• Focus mode (the expand icon next to the problem count) — expands the decl editor to fill the window, hiding the fields above and below it, for distraction-free editing of a long decl. Save, Revert, and the problem count stay right there next to the toggle; press Esc or click the icon again to leave.
• Save to Decl — commits your edits (Ctrl+S works as a shortcut while the decl editor has focus). Most visual changes won’t appear in the 3D editor until you reload the map (copy-pasting the entity, or playing the map, will reflect the change immediately even without a reload). You still need to save the map itself from SnapMap’s own menu — Save to Decl only writes the change into the in-memory map the editor is holding.
• Revert — discards your unsaved edits, reloading the entity’s last-saved state.
• Inherit / Class Descriptions (collapsible, below the editor) — a short description of what the current inherit and classname actually are, when Snapmap+ has one on file.

Understanding the Decl Format

The Decl Text editor uses the same syntax the engine itself uses to store entities, so it’s worth learning the shape of it before you start editing.

A property is written as propertyName = value; on its own line — the semicolon matters; a missing one can produce an error when the map loads. A value that’s text (a file path, an entity ID) needs quotes:

propertyName = "some/file/path";

Many properties are themselves a nested group of sub-properties, wrapped in braces:

scale = {
    x = 64;
    y = 64;
    z = 64;
}

Nesting can go arbitrarily deep — indentation is optional, but keeping it consistent makes it much easier to keep track of which brace closes which. If your braces don’t balance (a { with no matching }, or vice versa), the map will fail to load. Everything for the entity needs to sit inside the outermost edit { ... } block. If you accidentally duplicate a property, only the last copy of it survives a save.

Some properties are lists, using a slightly different shape:

renderModels = {
    num = 3;
    item[0] = "models/mapobjects/snapmaps/box_trigger.lwo";
    item[1] = "models/mapobjects/snapmaps/dynamic_block_solid.lwo";
    item[2] = "models/mapobjects/snapmaps/dynamic_block_textured.lwo";
}

item[N] entries are the list’s contents, numbered from 0; num is the count. Keep num accurate — too low, and Save to Decl will silently drop the out-of-range items; too high, and the game can crash when you try to play the map. You can freely add or remove items as long as you keep num matching.

A couple of things to keep in mind while editing:

• Most visual changes won’t show up in the 3D editor until you reload the map, copy-paste the entity, or play the map — the underlying data is correct immediately, the editor’s live view just doesn’t refresh itself.
• Custom materials specifically don’t preview in the editor at all except on Blocking Volumes — you’ll need to play the map to see how one actually looks, or temporarily apply it to a Blocking Volume if you want an in-editor preview.

Common Properties

A handful of properties come up constantly:

model (inside renderModelInfo) sets what an entity looks like, referencing a model file path. Works on any entity.

renderModelInfo = {
    model = "zion/characters/monsters/lostsoul/base/lostsoul.md6";
}

scale is a size multiplier on the model — 2 doubles it, decimals between 0 and 1 shrink it, and a negative value on one axis flips the model. This goes further than the in-game Size field for Blocking Volumes: you’re not limited to whole numbers or the in-game max size.

customMaterial re-textures the entire model with the material specified:

renderModelInfo = {
    model = "models/snapmaps/props/hell/monster_skull_01.lwo";
    customMaterial = "textures/snapmaps/hotspots/ind_panels_steel";
}

There are many more properties beyond these — most Snapmap+ users end up picking them up from community references and experimentation, since there isn’t a single authoritative list.

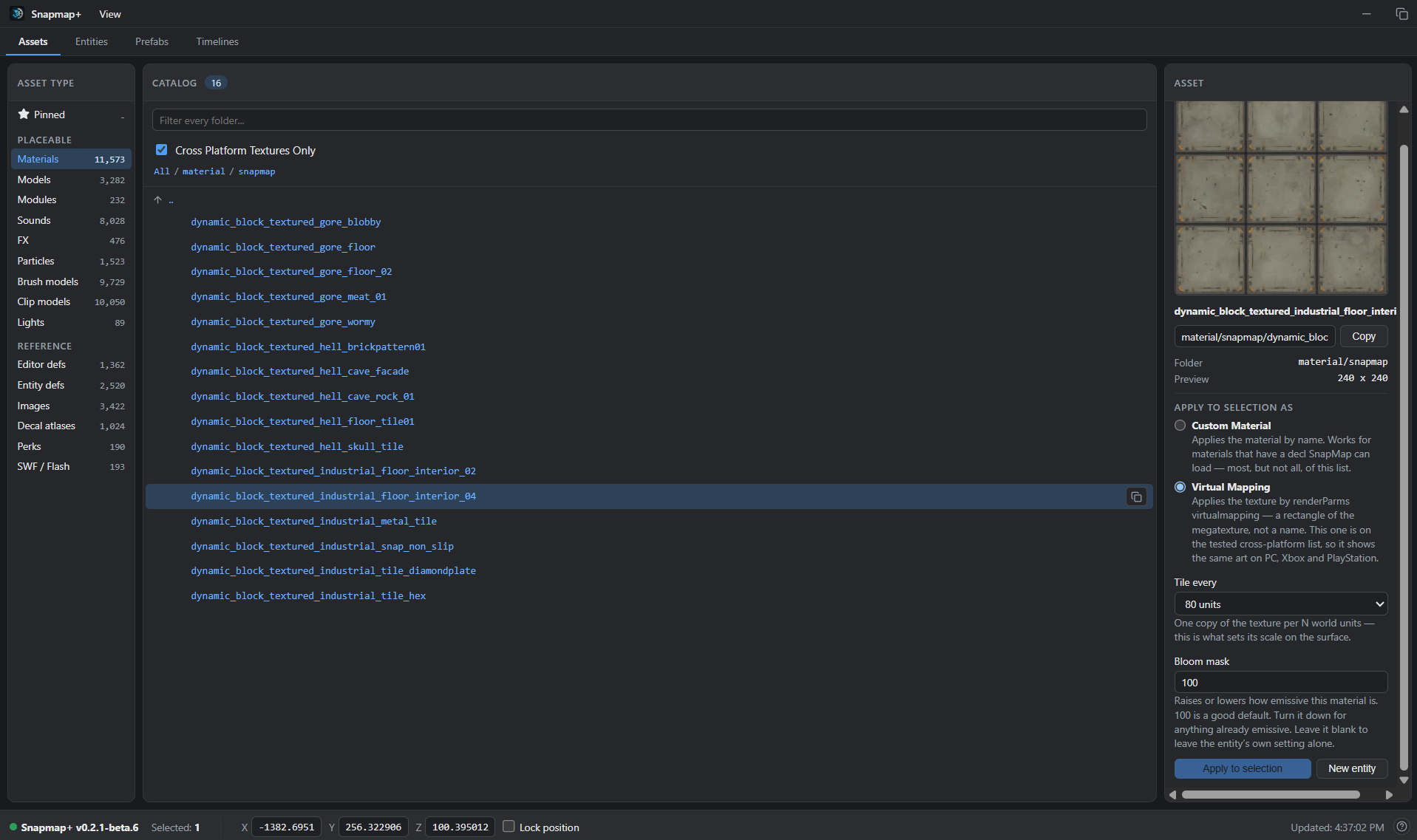

The Assets Tab

The Assets tab is a searchable browser over everything DOOM’s own shipped files contain — every material, model, sound, light, particle and more — with a live preview and one click to put what you found onto your map. Nothing here is a bundled list Snapmap+ ships: the catalog is built by reading your own installed game files the first time you open each category, so it’s always exactly what your copy of DOOM has.

The tab is three columns:

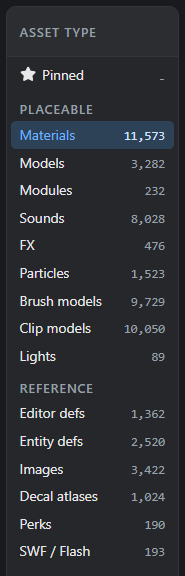

Asset Type (left) — pick a category. Placeable categories are things you can actually put on the map:

Reference categories (Editor defs, Entity defs, Images, Decal atlases, Perks, SWF/Flash) are look-up only — useful for finding a name to type in by hand, but nothing to click-apply, since there’s no single right way to wire something like a Perk or a .swf screen into an entity.

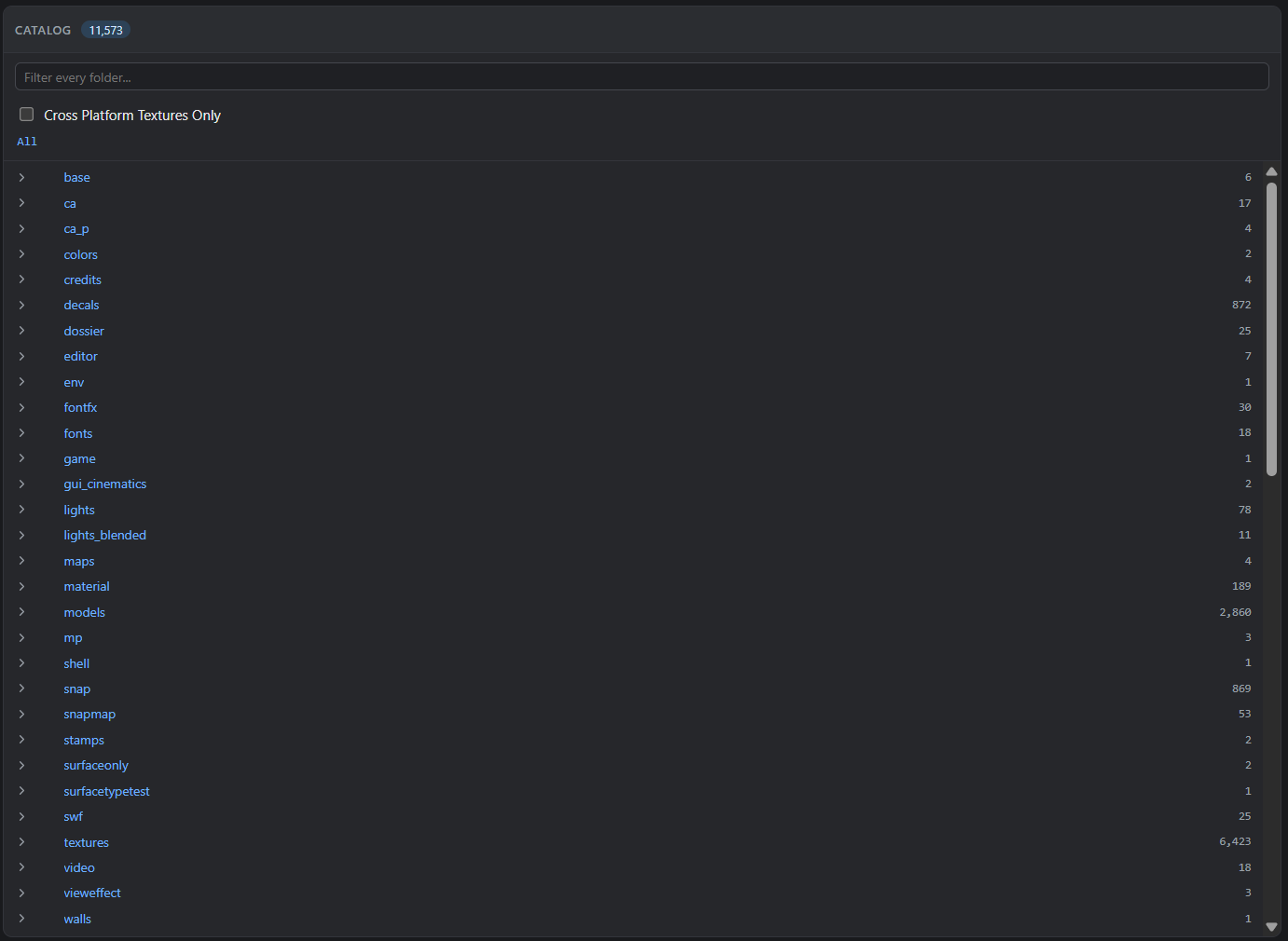

Catalog (middle) — browse a category’s folder tree, or type into Filter every folder… to search across all of it at once. Folders show how many assets are inside; click through, or search, until you land on the thing you want.

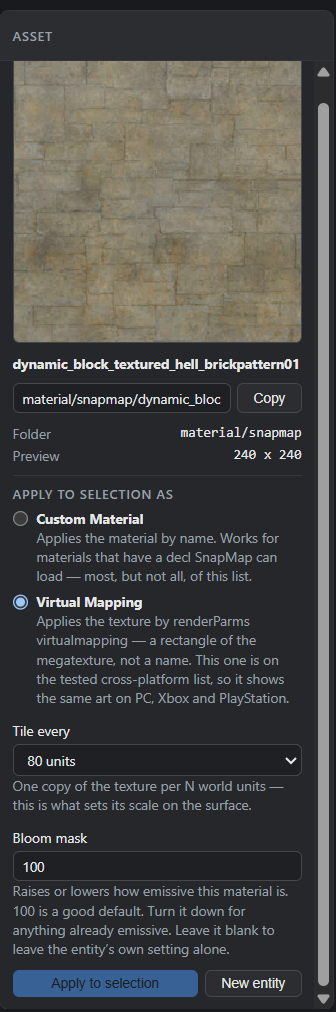

Asset (right) — once you pick something, its actual preview shows here: materials and images render as real pixels (decoded straight from the game’s own texture data, not a stand-in icon), and sounds get a play/stop button so you can listen before committing. Below the preview:

• Copy — copies the asset’s path, for pasting into a decl by hand.
• Apply to selection — writes the asset onto whichever entity you currently have selected, immediately. What it writes (and which entities will accept it) depends on the asset type: a material sets customMaterial, a model sets renderModelInfo.model, a sound sets sound on a speaker, and so on. If the selected entity’s class can’t use that kind of asset, Snapmap+ tells you why instead of quietly doing nothing.
• New entity — instead of applying to a selection, stages a fresh one-entity prefab holding the asset, picked up and ready to place exactly like Ctrl+V.
• A material specifically offers Custom Material (applies it by name) or Virtual Mapping (applies it as a rectangle of the shared megatexture instead of by name — the way to reach materials that have no name of their own) — plus a Tile every size and a Bloom mask strength.

Reaching it from an entity you already have selected: click Browse assets… on the Entities tab to open the same browser shown above as a modal, scoped to that entity — apply an asset straight to it without leaving the Entity State panel.

Reclassing an Entity

Every entity has an inherit and a classname. Changing either — or both — turns one type of entity into another.

classname determines the entity’s actual type in the engine, and what properties are meaningful for it. inherit determines what default values it starts from, and how the entity behaves while you’re still in the editor. The two have to agree with each other — a classname/inherit mismatch is a reliable way to crash the map.

Props are the safest thing to reclass. They have no placement or rotation restrictions, and they don’t carry hidden properties left over from a different entity type that could conflict with the type you’re converting to.

Inherit:   snapmaps/volume/blocking
Classname: idVolume_Blocking

A worked example — turning a prop into a Mover (a scriptable-movement entity):

1. Change Classname to idMover
2. Change Inherit to snapmaps/func/snap_lift
3. Save to Decl
4. Save the map and exit the editor
5. Re-open the map

Change both fields, then save — changing one and saving before the other is exactly the mismatch that crashes the map.

The Custom Palette Tab

Some entities exist in the DOOM engine but have no resource file made for SnapMap, so there’s nothing to put in inherit for them. Snapmap+ handles this with a generic snapmaps/unknown inherit that’s compatible with any classname — no mismatch risk, regardless of what type you’re setting up.

Rather than making you build one of these by hand every time, Snapmap+ seeds ready-to-place starting points — Unknown, Timeline, and Lift — directly into DOOM’s own Create menu, under a “*Custom” tab. They are built into Snapmap+ and served from memory; nothing is written to your data folder.

Drop either one in like any other object, then reclass it from there (see Reclassing an Entity) if you want a specific engine type rather than a bare Unknown. If no model is set, an Unknown entity shows as a wireframe box in the editor — that box never appears in the actual game, it’s an editor-only placeholder.

Steps to reclass one manually, if you’re not starting from the *Custom tab:

1. Change Classname to the type you want.
2. Change Inherit to snapmaps/unknown.
3. Save to Decl — only after both fields are changed, not one at a time, or the map will likely crash from the momentary mismatch.
4. Save the map, exit, and re-open it (or copy-paste the entity and delete the original).

Targets and Logic Signaling

Every entity in the engine can have a targets list — this is a lower-level version of the signal system SnapMap’s own logic nodes are built on top of. Adding an entity to another’s targets list has the same effect as drawing a SnapMap logic line between them:

targets = {
    item[0] = "1_ind_totally_blank_room_4x/snapmaps/unknown_3923";
    num = 1;
}

What happens when the signal arrives depends on what’s receiving it. Signaling an FX or a light directly toggles it on/off. Entities with a classname starting idTarget_ do something more specific when signaled — idTarget_Damage deals custom damage to everything in its own targets list, idTarget_DummyFire fires a projectile at them, and so on; think of these as the engine-level version of SnapMap logic Inputs like “Spawn Object” or “Start Timer”.

Because targets and SnapMap’s own logic system both drive the same underlying signal, you can mix them: add a targets list to a SnapMap logic output (On Spawned, On Entered, On Used…) or a filter (Player Filter, Boolean Filter…), and firing that output/filter also signals whatever’s in the list — letting your normal SnapMap logic reach entities that aren’t SnapMap logic nodes at all.

sh_target_any (a DOOM console command — press ~ to open the console) is a second way to wire this up, without touching decl text at all. While it’s toggled on, entities that would normally need a targets list become valid endpoints for the native wire tool — so you can drag a wire from a logic node straight to one, the same way you’d wire two ordinary SnapMap logic nodes together, instead of typing an ID into a targets list by hand. Run sh_target_any again to turn it back off and return to normal SnapMap logic wiring.

A lot more becomes possible once you’re editing raw decls directly – turning entities into Movers (scripted movement/rotation), universal entity spawners, Particle Emitters, custom-animated models, and binding entities together so they move as one. That’s engine-level territory rather than a Snapmap+ UI feature as such, so it’s covered separately rather than here.

The Timelines Tab

A Timeline is a single entity that can run multiple scripted actions, on multiple other entities, at the same or staggered times. Timelines are painful to set up by hand in the raw decl text, so Snapmap+ gives them a dedicated editor.

Getting a Timeline into your map: place one from the *Custom palette tab (see The Custom Palette Tab) — this is the reliable way to do it, since it comes with a valid module location already baked in. It’s worth giving each Timeline a unique Displayname so you can tell them apart in the list.

Once it’s placed, it shows up here automatically — find it in the list and double-click to open it in the editor on the right.

A Timeline is organized into entity events and eventcalls. For every entity you want to script, you add one entity-event tab; under that tab, you add one eventcall per script you want to run on that entity.

• The + tab adds a new entity-event tab, labeled Item N (matching the underlying decl’s own item[N] numbering).
• Runs on picks which entity that tab’s eventcalls apply to — type an ID, pick from the dropdown, or select the entity in the SnapMap editor and click Use current selection (exactly one entity must be selected for that to work).
• Add Eventcall appends a new, blank script call under the current tab.
• Each eventcall has a Time (milliseconds of delay between the Timeline firing and this eventcall running — can be left blank) and an event/script name — type to search, or pick from the dropdown. Once a script is picked, its specific parameters appear below it as proper typed fields (a checkbox for a boolean, a coordinate row for a vector, a constrained dropdown for a decl/enum reference) — unlike Time, every one of these needs a value, or you’ll hit errors.
• What does this event do? (collapsible, under a configured eventcall) gives a short explanation of the selected script, when one’s on file.
• Save Timeline commits your edits to the Timeline entity. As with any other entity, you still need to save the map itself from SnapMap’s own menu afterward. Revert discards local edits and re-reads the Timeline as it currently exists on the map.

A Timeline isn’t a native SnapMap logic node, so signaling it only works through Targets — either by adding its ID to another entity’s targets list directly, or by turning on sh_target_any and wiring it up with the native wire tool.

The Prefabs Tab

The Prefabs tab saves a group of entities so you can reuse it later, or share it with someone else running Snapmap+.

Creating one: select the entities in the SnapMap editor, then click Create from selection. Give it a name, and it’s added to the list. Your cursor must be hovering one of the selected objects when you do this — whichever object that is becomes the one centered on your cursor when you later paste the prefab back in. SnapMap anchors the prefab on the line through the centre of your view, not on the cursor. If that line misses the hovered object, Snapmap+ anchors the prefab on the hovered object itself instead and says grab point corrected when it saves. Without this the saved positions could come out scrambled. When you paste, the prefab appears in front of the camera, turned by however much your heading has changed since you created it.

Using one: select a prefab in the list to see its details on the right — its name, description, and tags, plus an interactive 3D preview of what you’re about to place: drag to orbit, scroll to zoom, double-click to frame it. The preview colors entities by what they do — solid, blocking, AI Navigation, interactable, logic/I/O, triggers — so you can tell what a prefab actually contains before you drop it in. It shows the prefab level and upright, the way it pastes, even when it was created while hovering a tilted ramp. Blocking Boxes ticked for AI Navigation are tinted green, and their number appears beside the entity count. Click Load / Place to stage the prefab for placement with SnapMap’s built-in paste function, then switch to the editor and press Ctrl+V to actually drop it into the map. When the placed prefab brings in AI Navigation boxes, Snapmap+ updates the navmesh by itself once you drop it, just as View > Update Navmesh would.

Organizing: New Folder creates a folder you can drag prefabs into; Filter prefabs… narrows the list by name. Selecting a prefab and clicking Delete removes it permanently.

Prefabs are stored as individual files under %LOCALAPPDATA%\snapmap-plus\prefabs\ — sharing one is just sending someone that file; they drop it into their own prefabs folder (or the matching subfolder, to land it in the same folder on their end) and it shows up in their list. You can drop a file into that folder from Windows while Snapmap+ is already running — no restart needed, it picks the new prefab up right away.

Rawmaps

A rawmap is a human-readable JSON copy of a map. Use one to share a map without publishing it, keep backups, or edit its contents in a text editor. The default file is %LOCALAPPDATA%\snapmap-plus\rawmap.json.

All rawmap actions are in the File menu:

Under these options, Load Path and Save Path show the files Snapmap+ uses. Hover over one to see the full path.

A rawmap you open is a new map. DOOM’s own Save asks for a new name, so it does not replace the saved map it opened over. If Snapmap+ cannot give that protection, it refuses to load rawmaps. Opening a rawmap in place needs at least one local map saved through DOOM. You can also open a map from DOOM’s list while a rawmap is waiting.

A save is refused when no map is open in the editor. A save is cancelled if you leave the map before it runs.

Rawmaps are saved as compact JSON on one line. To save them with line breaks and indents, type sh_pretty_on 1 in the console before you save. Type sh_pretty_on 0 to go back to compact JSON.

Run sh_rawmaps help for the console commands. sh_rawmaps list [folder] lists rawmap files, sh_rawmaps load <path> stages a file, sh_rawmaps load opens it, and sh_rawmaps save [path] exports the live map. Console loads discard unsaved edits without a confirmation prompt. The advanced command sh_rawmaps overwrite on allows DOOM’s Save to replace the borrowed saved map; that choice lasts only until DOOM closes. Keep it off to preserve that map.

Packages

The package system is being rebuilt for the April 2024 DOOM update (Steam build 13954591). This release reads, installs and carries no packages: nothing is loaded from %LOCALAPPDATA%\snapmap-plus\overrides\, no package-cache or package-staging folder is created, and a map saved or published with packages by an earlier release loads as a plain map without them. Folders that earlier releases left are not touched; you can keep or delete them.

Inside DOOM’s Editor

Some of Snapmap+’s features live inside DOOM’s own editor rather than in the Snapmap+ window: the Module Properties panel, the SNAPMAP+ MOD SETTINGS tab under Settings > Properties, and the Start menu. They change the shape of a map itself, from the size of a room to the distance the game draws, and each one says whether a map that uses it still plays for people without Snapmap+.

Resizing Grid Rooms

Highlight a classic or modern Grid Room in DOOM’s editor and press X to open Module Properties. Change Grid Room Size X, Y and Z. This works in Blueprint mode and keeps the Blueprint camera. Left Ctrl opens the action menu; the size controls are in DOOM itself.

Each room keeps its own dimensions. Doors and frames stay their original size, and all of the room’s built-in lights follow the resized room: they spread with the walls, the ceiling light stays just under the roof, and the room looks the same after you save and reload it. Brightness and color do not change. Objects you placed keep their module-local positions and sizes, so inspect objects near the walls after shrinking. Connected branches move to retain their doorways; conflicting connection loops and new overlaps can prevent an edit.

Out-of-range values clamp and the panel shows the applied dimensions. Only the value you changed is adjusted. If a room cannot grow further on that axis, the panel keeps the size that fits; the Snapmap+ log (sh_backend.log) says which room or connected module reached which limit. A room that already extends past the limit can always be made smaller. The maximum follows the current snapEdit_environmentModuleBounds cvar, the room’s world position and its connected neighbors. Raising that cvar allows larger rooms without restarting, up to native collision and navigation coordinate limits. Snapmap+ does not change the cvar for you. The current process retains up to 64 distinct size/type combinations; restart DOOM if that cache fills. Keep the world cvar large enough when reopening or playing a map authored with a raised limit; the room dimensions are saved, but this cvar is not stored in the map. For example, snapEdit_environmentModuleBounds 30000 permits a larger world box, while each room still has to fit at its actual position.

Save and load normally. Collision, navigation and marked blocking-volume navigation use the resized room. Players need Snapmap+ to load these maps. The resizing feature is included in the existing backend DLL; it needs no separate file beside the map.

To return a map to vanilla compatibility, restore every Grid Room to its original dimensions, turn Unlock View Distance off, and remove any other mod-only content. Save again.

The faint green surface grid appears when placing or moving objects that use the game’s navigation placement display, such as demons. Its brightness pulses, so it can become very faint while still enabled. It follows the room’s native display surfaces, rather than covering every wall or appearing for every prop or logic object. Snap to Grid moves the held object to the editing grid; it does not toggle this display. The custom blocking-volume navigation preview is a separate overlay.

Map bounds and Blueprint zoom

Snapmap+ adds a third tab to DOOM’s Settings > Properties panel. Switch tabs with the bumpers (or Q / E) or click the third diamond at the top of the panel; the tab is titled SNAPMAP+ MOD SETTINGS. Every setting on it is a Snapmap+ mod. Stepping a number past either end of its range stops at that end. If the tab cannot be installed on your game build, the same controls appear at the end of the first tab.

Unlock Map Bounds is an on/off setting. SnapMap normally marks any module that reaches beyond 16000 units from the map center in X, Y or Z as an invalid placement. Turning it on widens that box to the largest size the game can handle, 32671 units, for this map; the editor camera, the Blueprint floor grid and the Blueprint floor range follow. Choose Apply, then save the map; the setting is stored inside the map and is used whenever the map is edited, played or loaded directly. A map saved by an earlier Snapmap+ version with a number between the two keeps that number and shows the setting as On until you change it.

The highest value is 32671. Collision and AI navigation store world positions as 16-bit numbers that end at 32767, and navigation reaches up to 96 units beyond a module, so modules cannot go farther even with Snapmap+.

Only Snapmap+ can open the extra space. Each PC checks module positions with its own limit when it loads a map, so players without Snapmap+ see the modules past 16000 as invalid and the game can crash loading the map. Keep the default for maps you want everyone to play. Turning the setting off removes the requirement, as long as no module still sits outside the native box.

Snapmap+ also lets the Blueprint camera zoom out until the whole map fits on screen, on any map: up to 44000 units above the floor instead of DOOM’s 16000, or about 90000 when the map uses Unlock Map Bounds. While you are zoomed out in Blueprint the game draws far enough to keep the floor in view, and the editor’s fog-free space is enlarged so the camera never ends up looking through a thick blue fog. This is an editor convenience on your PC only and changes nothing in your maps.

Because the zoom-out limit grows with the map bounds, a fully zoomed-out map with Unlock Map Bounds fills the screen just as a native map does: the floor grid and the space for modules are about twice as wide in game units, but they look the same size on screen. Compare the two at the same camera height to see the difference. Modules can be hovered, grabbed and placed from any zoom level.

Unlock view distance

Open Settings > Properties in DOOM’s SnapMap editor and switch to the SNAPMAP+ MOD SETTINGS tab; the setting is Unlock View Distance. Choose Apply, then save your map normally. Cancel discards unapplied changes. The setting is saved into this map and works with both OpenGL and Vulkan. Loading another map uses that map’s own setting.

• Off (default): the map is drawn exactly as the unmodified game draws it. Each environment keeps its own far-clip distance and its own fog, and modules, Set Environment and Player Set Environment logic nodes and campaign environments such as the Lazarus archive (15000) all keep control. A room on the Default Environment FX draws to 60000 units in the editor, darkening into fog after about 32000, but only 8192 units in Play. Many other Environment FX stop at 8000, 8192, 10000 or 32768.
• On: the map draws to 200000 units, the farthest the game allows, in the editor (every camera, Blueprint included) and in Play. Each Environment FX keeps its look: its fog, color, grading and lighting stay, and its fog is stretched by the same factor as its distance, so fog that used to close in at the old far clip now closes in at 200000 instead. Set Environment and Player Set Environment nodes still change the environment; only the distance is replaced and the fog stretched to match. It is not infinite.

Turning the setting on modifies the map: it is stored in the map as a string variable named smp.render.v1. Turning it off and applying removes that variable again, so the next save writes the map exactly as the unmodified game would. Players without Snapmap+ can load a map saved with it on; they see the map with its original environments.

On a four-room test map, frame times were the same with the setting on and off (the game stayed at its 60 frames per second limit in the editor and 200 in Play either way), but a large open room with many objects in view can still cost more, because nothing past the old distance is cut away any more.

Fog is not a map setting. Use environments and Set Environment nodes for fog; with this setting on their fog is kept but drawn farther out.

Maps saved with earlier Snapmap+ versions, which stored a View Distance number, read as follows: a distance of 8192 (the old default) reads as Off, and its variable is removed the next time the map is saved; any other distance, including 0, reads as On. Their old map fog values are ignored. Maps saved with the former enable switch off read as Off.

AI navigation on Blocking Boxes

Enable AI Navigation and Block Demons on a Blocking Box to use its exposed, walkable surfaces for demon navigation. Rotating a box can make one of its sides the new walking surface. Slopes retain their actual angle, and overlapping boxes contribute their exposed surfaces.

Default-sized boxes work too, including in maps created before Snapmap+ was installed, and they keep their navigation preview after you save. You do not need to resize a box or recreate the map to enable navigation.

For a wall that demons should go around, leave AI Navigation off and keep Block Demons on. Ordinary Blocking Boxes already participate as obstacles, including where they overlap custom navigation. Enable AI Navigation when the box should also provide a walkable top or slope. Vertical walls and downward faces do not become walking surfaces; climbing uses approach and landing connections between valid surfaces.

The green preview shows the smallest demon navigation size. Larger demons need more standing room and clearance, so a narrow green surface may still be too small for a hell knight. Climbing also requires an available traversal animation and clear approach and landing positions; the floor-side positions account for the whole rotated box, including an overhanging slope.

A map can hold up to 65,536 boxes with AI Navigation or Block Demons and 8,192 placed modules. Each module copy (a “room” in the messages) bakes up to 2,048 boxes, and up to 2,048 walkable pieces per demon size. Past any of these the extra boxes are left out and named, and the rest of the map keeps its navigation.

When something does not fit, Snapmap+ leaves out the smallest part it can instead of refusing the map:

• A box whose size, rotation or room cannot be read, or that two rooms claim, is left out on its own. A box in a room whose position cannot be read is left out with that room’s other boxes only.
• The engine allows at most 256 routes out of one navigation area. When a busy floor would pass that, the boxes adding the most routes there give up just enough of them.
• The engine loads no navigation tree deeper than 128. A room that would pass it keeps three quarters of its floor boxes at a time until it fits.
• One room’s navigation file is kept within 16 MiB. Very many boxes close together (hundreds within jumping range of each other) can pass that, because every pair gets its own leaps. The room then keeps the shortest moves out of each box and gives up the longest leaps until it fits; only if that is not enough does it give up floor boxes, three quarters at a time.
• Each demon size is baked on its own. If the smallest size cannot be built, larger demons still use the boxes, and a size that failed is not baked again at Play unless the map changed.
• A room that cannot be built at all keeps its normal navmesh; the other rooms are still built.

Boxes that lost routes or were left out this way are drawn amber in the preview. The completion toast says Navmesh Built, Navmesh Partly Built with how many rooms were built and the first room that kept or lost something and why, or Navmesh Build Failed when no room could be built or the map could not be read. The View menu shows the same summary. Run sh_navmesh in the game console for every room, demon size and box with its reason; sh_backend.log has the same lines. The one route refusal left is a module whose own navigation already fills an area; the boxes routing into it are marked red. An obstructed or disconnected route can also stop a demon without removing the navigation mesh. Leave enough room around wall ends for the intended demon size and keep spawn, approach and landing points clear.

Build navigation from the editor’s Start menu with Build Navmesh, beside Save. The game shows Building Navmesh while the worker runs, then a native completion toast, just like ordinary Save. This does not save or name the map, and it does not require a player start. It also works in Blueprint mode and with the green preview turned off.

The same operation is available through View > Update Navmesh in Snapmap+. The preview is read when the map opens and when you request an update. Editing does not read the map. When you add, delete, move or change the flags of a box with AI Navigation or Block Demons, the View menu says Navmesh is out of date. Other edits do not change it. The preview hides while geometry is held. Play always uses the current map: if it changed since the last update, Play bakes it again, but only the rooms that changed. Each room’s navigation for all three demon sizes is kept after it is built, so a room whose boxes and position are unchanged is not baked again at the next Play, after reloading the map, or when it is launched from outside the editor. The first Play of a session bakes the two larger demon sizes, which Build Navmesh does not. If the View menu says Could not read this map, run sh_navmesh for the reason.

Duplicated boxes that share an ID keep their navigation when the map assigns that ID to one module. An ID assigned to different modules is ambiguous, so the boxes carrying it are left out; the rest of the map keeps its navigation. Baking runs in the background, so the previous lines can remain briefly while the new result arrives. sh_perf reports time spent reading the map and building the preview; sh_perf reset clears those counters.

SnapStack (Bulk Editing)

SnapStack lets you edit many entities at once from the DOOM console (press ~ to open it), instead of one at a time through the Entity State panel. Every command starts with sh.

The stack/group model

Most SnapStack commands work against a stack — a scratch list of entities, numbered (stack 0 is the default) — or a group, a named list that (unlike a stack) doesn’t get cleared out after you use it. Groups are what you want for running several edits against the same set of entities without reselecting them each time.

• sh psel [stack] — takes your current in-game selection and pushes it onto a stack (default stack 0). De-selects everything in-game once it’s stored, and reports how many entities landed in which stack. Right-clicking a row in the Entities tab and choosing Push to stack 0 does the same thing for that one entity.
• sh phov [stack] — pushes whatever entity you’re currently hovering (not necessarily selected) onto a stack. Pushing the same one twice doesn’t duplicate it.
• sh pr [stack] [lo] [hi] — pushes every valid id in the inclusive range lo..hi onto a stack, without needing to select any of them first.
• sh pg [name] [stack] — pushes a named group’s ids onto a stack (sh pg [name] alone targets stack 0) — the reverse direction of pop2g below.
• sh pop2g [stack] [name] — moves a stack’s contents into a named group (replacing that group’s previous contents, if any).
• sh popsel [stack or group] — re-selects, in-game, everything stored in a stack or group. Useful both for finding something you can only see in the Entities list, and for pulling a group’s contents back into a stack you can run other commands against.
• sh cstk [stack] — empties a stack out. (Right-clicking in the Entities tab and choosing Clear stack 0 does the same thing for stack 0 specifically.)

Narrowing a stack

Once a stack has entities in it, you can filter it down before running an edit — useful when a selection (or a range/group) contains more than what you actually want to change:

• sh filtinh [stack] [inherit] — keeps only the stacked entities whose inherit matches.
• sh filtcls [stack] [classname] — keeps only the stacked entities whose classname matches.

Bulk-edit commands

All of these take [stack or group] first, then more arguments, and (when a stack is used) clear that stack once they run:

[property path] uses dots for nested properties — clipModelInfo.size.x, renderModelInfo.color.r, and so on, the sub-property you want to change written last. Get inherit/classname wrong together (with bsin/bscls alone rather than bsincls) and you risk the same mismatch crash as reclassing a single entity by hand — see Reclassing an Entity.

bse, accl, and acctargets all need to know which entity was selected last — since groups don’t track that, those three only work against a stack.

One more, a bit different from the rest: sh mkcmd [stack] synthesizes a reusable command-entity macro out of everything currently in a stack, rather than editing a property on each entity directly.

A few worked examples

Retexture a group of objects at once:

(select the objects to receive the property)
sh psel
sh bss 0 renderModelInfo.customMaterial "material/snapmap/dynamic_block_solid"

Bind several objects to a mover, all at once, with rotation:

(select the objects to bind, not the mover)
sh psel
sh pop2g 0 binds
sh bsb binds bindInfo.bindOriented true
sh popsel binds
(select the mover)
sh psel
sh bse 0 bindInfo.bindParent

Wire one entity to signal several others via targets, quickly:

(select the entities that should be signaled)
(then also select the entity that will do the signaling — last)
sh psel
sh acctargets 1

New in Snapmap+

A few extra commands beyond the original SnapStack set, for inspecting stacks/groups directly instead of guessing what’s in them:

Advanced: Every Console Command

Everything above covers Snapmap+ through its window. Snapmap+ also adds a set of commands straight to DOOM’s own console (press ~ to open it) — some are shortcuts for things the window already does, others are console-only tools with no window equivalent. Run sh_help at any time to print the full, current list with descriptions directly from the running build; the tables below are the same list, organized by what each command is for. (Not repeated here: sh and its bulk-edit subcommands, sh_target_any, and sh_rawmaps_on / sh_rawmaps_off — those are covered in their own sections above.)

Inspecting entities and resources

Rawmaps

Compiling assets

Player cheats

Five toggles for your own player, mainly useful while testing a map solo:

Cvars

Settings you read or change with <name> or <name> <value> in the console:

Developer and diagnostic tools

The rest exist mainly for Snapmap+’s own developers to debug the engine hooks — you’re unlikely to need them, but they’re listed here for completeness since sh_help shows them too:

Reporting Bugs and Requesting Features

Snapmap+ has a built-in way to send feedback straight to the developers — no GitHub account, no email, no leaving the game. Click the small ? button in the bottom-right corner of the status bar to open the Send feedback dialog.

Fill in:

• Category — Bug report, Feature request, Incorrect description / info (something in this guide or the app’s own text is wrong), or Other.
• Title — a one-line summary.
• Details — what happened, what you expected instead, and steps to reproduce if it’s a bug. The more specific, the more useful.
• Contact (optional) — an email, Discord handle, or GitHub username, only if you want a reply.

Each report also carries the Snapmap+ version, the renderer you are running and your game’s identity, such as DOOM 2016 build 13954591 (20240321-104810-ginger-fuchsia, Vulkan, 3d8b4393): the DOOM build, the game’s own build name, the renderer and the start of the executable’s fingerprint. That is how the developers tell which DOOM a report came from; nothing else about your PC is sent.

Click Send and it’s filed as a public issue on the project’s tracker under the category you picked. If someone’s already reported the same thing, Snapmap+ recognizes the duplicate and adds your report as a note on the existing issue instead of creating a new one.

The same reporting pipeline also backs Snapmap+’s crash report dialog: if the game hits a serious fault, a crash dialog opens (right away if Snapmap+ recovered in place, or on your next launch otherwise) with the error, an optional description of what you were doing, and a checkbox to attach recent log text (anonymized — your Windows account and machine name are stripped before anything is sent). Sending it files a crash-labeled issue the same way, and repeat crashes at the same spot get grouped onto one issue rather than filing duplicates.

Nothing is sent unless you click Send — Snapmap+ makes no other network requests on its own.

Reporting without the app. If you open an issue on GitHub yourself, say which DOOM build you are on: run snapmap-plus status in a terminal and paste its Game: line (for example DOOM 2016 build 13954591 (20240321-104810-ginger-fuchsia, Vulkan, 3d8b4393)). If Snapmap+ will not install, say whether your game is the April 2024 update or the 2018 build.
